AP309 Portable Dental Unit
with Integrated X-ray System
The AP309 represents the pinnacle of mobile dental technology—a complete diagnostic and treatment workstation that eliminates the need for separate X-ray rooms. Instantly capture, view, and store radiographic images on the integrated PC system while performing chairside treatment, revolutionizing workflow efficiency.
🎯 Revolutionary Diagnose-and-Treat Workflow
Traditional dental practices waste 15-20 minutes per patient moving between treatment rooms and X-ray facilities. The AP309 integrates high-frequency X-ray imaging directly into the treatment cart, allowing clinicians to:
- Capture X-rays chairside without moving the patient
- View images instantly on the built-in PC monitor for immediate diagnosis
- Adjust treatment plan in real-time based on radiographic findings
- Store digital records automatically in patient files
- Compare before/after images to demonstrate treatment outcomes
6 Core Masteries You Will Gain Today
Elevate your clinical standards and streamline your daily veterinary workflow
Rapid Imaging Workflow
Slash your positioning time by 60% with our "Three-Step Alignment" technique. Capture crisp, diagnostic images without repetitive retakes.
Evidence-Based Diagnosis
Move beyond clinical guesswork. Master the art of reading subtle bone density changes to provide pinpoint accurate surgical plans.
High-Value Client Bond
Bridge the gap between "seeing" and "believing." Use our visual storytelling script to drive 90% client compliance with ease.
Zero-Pathology Guarantee
Never leave a broken root tip behind. Learn to identify the "hidden 35%" of dental diseases that standard visual exams consistently overlook.
Predictable Procedure Timing
Eliminate the "Dental Black Hole" that ruins your afternoon schedule. Know exactly how long each extraction will take before starting.
Clinical Excellence & Pride
Shift from being "the person who cleans teeth" to the specialist who saves lives. Gain the peace of mind that comes from gold-standard practice.
💡 Why Choose AP309 Over Traditional Setups?
No Separate X-ray Room Required
Traditional Setup Cost:
- X-ray room construction: $30,000-$50,000 (lead shielding, doors, signage)
- Wall-mounted X-ray unit: $8,000-$15,000
- Separate imaging computer/software: $3,000-$5,000
- Total: $41,000-$70,000
- Plus: Permanent space commitment (150-200 sq ft)
AP309 Solution:
- Integrated X-ray + PC system
- No construction required
- Mobile—use anywhere
- Significant cost and space savings per setup
Instant Diagnostic Workflow
Traditional Process:
- Escort patient to X-ray room (2-3 min)
- Position patient, take images (3-5 min)
- Return to treatment room (2-3 min)
- Wait for images to process/load (2-4 min)
- Review images, discuss findings (5-10 min)
- Total time: 14-25 minutes
AP309 Workflow:

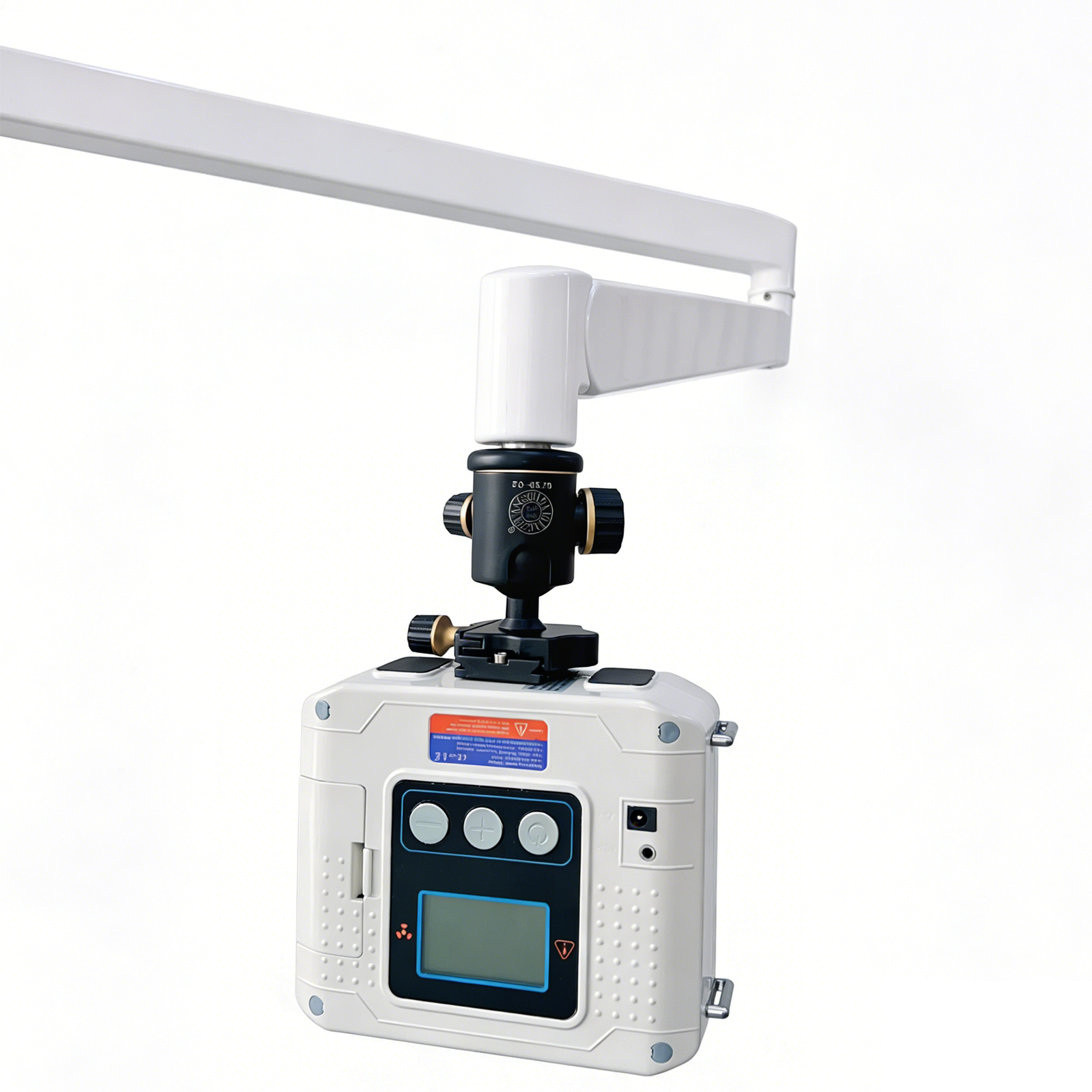

- Position X-ray arm (30 seconds)
- Capture image (10 seconds)
- View on integrated monitor instantly
- Discuss findings with patient immediately
- Total time: 2-3 minutes
Time Savings: 12-22 minutes per patient = 3-4 additional patients per day
Superior Patient Education & Case Acceptance
Challenge: Patients struggle to understand verbal explanations. Cavities or bone loss are hard to visualize, leading to hesitation.
AP309 Advantage: Instantly display high-resolution X-ray images on the monitor while patient is in the chair. Point to problem areas and zoom in. Visual evidence dramatically improves trust.
Clinical Result: Practices report 45-65% increase in treatment acceptance compared to verbal explanation alone.
High-Frequency X-ray Technology
vs. Traditional DC X-ray Units:
| Feature | Traditional DC | AP309 High-Freq |
|---|---|---|
| Image Quality | Variable contrast | Sharp, consistent |
| Radiation Dose | Higher exposure | 30-40% lower |
Safety: Lower radiation dose protects both patients and staff. Meets ISO, CE, and FDA standards.
🏥 Ideal Applications:
- General Dental Practices: Add diagnostic imaging without expensive X-ray room construction
- Mobile Dental Services: Serve underserved populations with complete diagnostic capability
- Hospital Emergency Departments: Provide immediate dental diagnostics for trauma cases
- Multi-Location Practices: Share one AP309 between satellite offices
- Corporate Dental Programs: On-site employee dental care with full diagnostic capabilities
- Nursing Homes & Senior Care: Bring diagnostics to patients who can't travel
📡 Instant Chairside Diagnostics
The AP309 eliminates workflow bottlenecks by bringing X-ray imaging directly to the treatment chair.

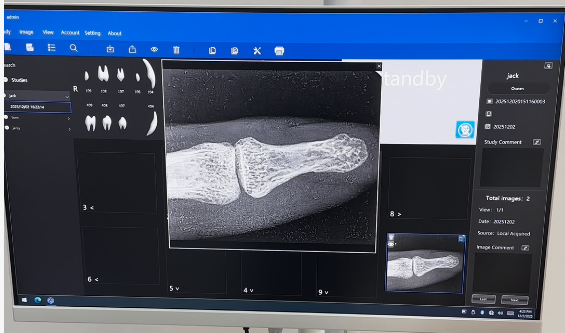

- ✓ Instant Imaging: Capture and view X-rays immediately on built-in PC monitor
- ✓ Streamlined Workflow: No patient movement - diagnose and treat in one spot
- ✓ Digital Records: Automatically save images to patient folders with one click
🛠️ Complete Configuration & Technical Specifications
📦 Package Configuration

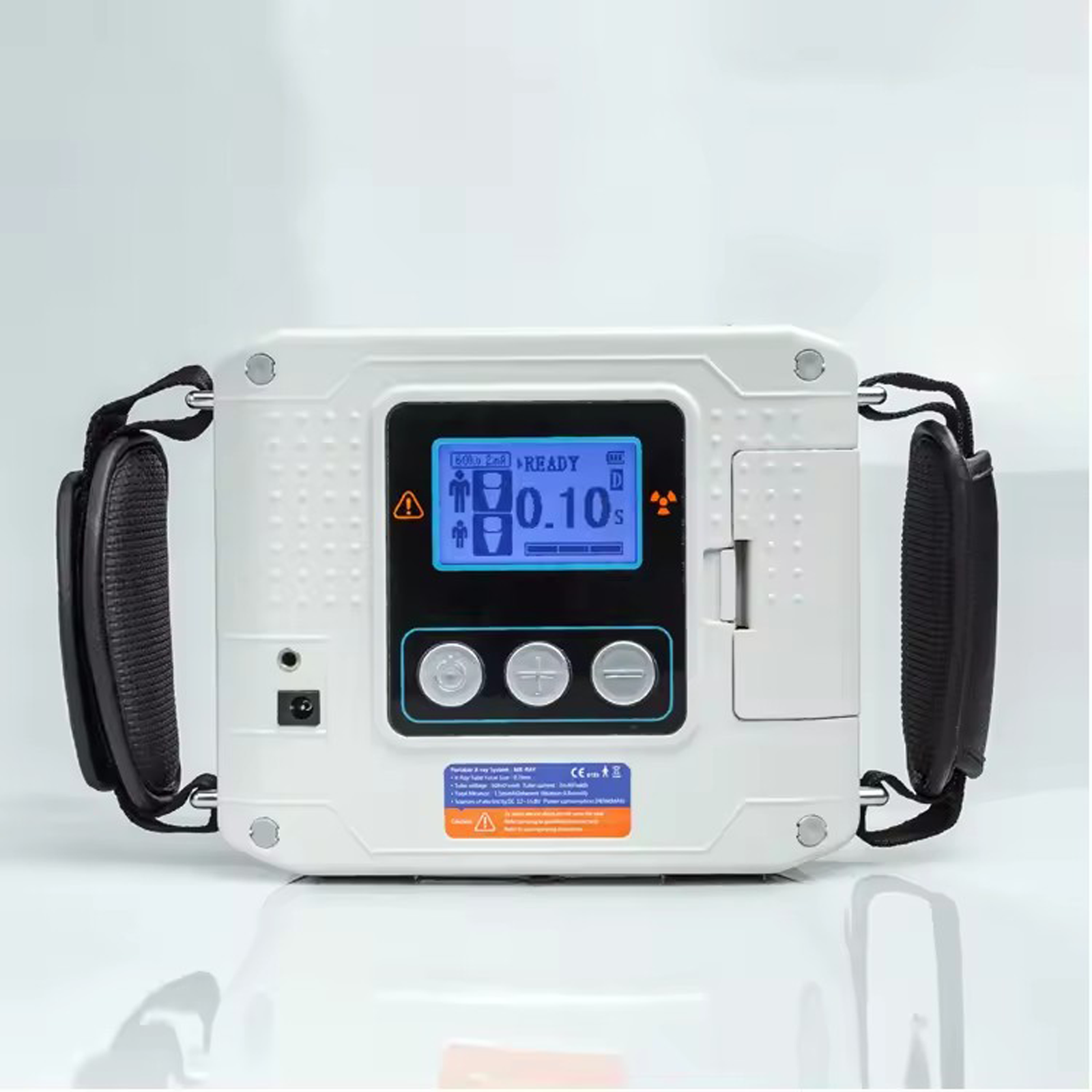

- 📡 Integrated X-ray Unit 1 pcHigh-frequency generator, digital sensor compatible
- 💻 PC with Oral Camera System 1 pcWindows 10 Pro, 1080p HD camera
- ⚕️ Built-in Ultrasonic Scaler 1 pcWoodpecker® Original, 28kHz
- 💡 Built-in LED Curing Light 1 pc≥1000 mW/cm², Woodpecker®
- 💉 Three Way Syringe1 pc
- ⚡ High Speed Handpiece Tube1 pc
- 🔧 Low Speed Handpiece Tube1 pc
- 🌪️ Strong Suction Tube1 pc
- 💧 Water & Drain Bottles1 set
- 🔌 550W Silent Compressor1 pc
- 🦶 Foot Control1 pc
⚙️ Technical Specifications
| X-ray Imaging System | |
|---|---|
| X-ray Type | High-Frequency Digital |
| Radiation Reduction | 30-40% lower than traditional DC units |
| PC & Imaging | |
| Operating System | Windows 10 Pro (64-bit) |
| Software | All DICOM, TWAIN compatibility |
| Intraoral Camera | 1080p HD, USB 3.0 |
| Compressor System | |
| Power | 550W Oil-Free Silent |
| Noise Level | ≤38 dB(A) |
| Physical & Certs | |
| Voltage | 110V/60Hz or 220V/50Hz |
| Weight | Approx. 80 kg total |
| Quality Cert | ISO 13485:2016 / CE Marked |
| Warranty | 2 Years Comprehensive |
Common Questions About AP309
No special installation required. The AP309 is a completely mobile unit that plugs into standard electrical outlets.
Radiation Safety: The high-frequency X-ray system produces a narrow, focused beam with minimal scatter radiation. When used according to standard dental radiography protocols (proper angulation, lead aprons for patients, operator distance), it does not require dedicated lead-shielded rooms.
Regulatory Compliance: The AP309 meets all international radiation safety standards. However, we recommend consulting local health authorities, as some jurisdictions may have specific requirements regardless of equipment type.
Superior Quality: The AP309's high-frequency generator produces more consistent, stable X-ray output compared to older DC-based systems. This results in:
- Sharper image detail for better diagnostic accuracy
- More consistent contrast across all images
- Reduced noise and artifacts
- 30-40% lower radiation dose while maintaining diagnostic quality
Many clinicians report the AP309's image quality equals or exceeds their previous wall-mounted systems.
The AP309's Windows 10 PC supports all major dental imaging and practice management software:
Compatible Systems: Dentrix, Eaglesoft, Patterson, Softdent, Open Dental, Curve, Tab32, DEXIS, Schick CDR, Kodak/Carestream, Apteryx, and all DICOM-compliant software.
Integration: TWAIN driver support ensures one-click image capture directly into patient charts. Our technical team provides remote setup assistance to configure your specific software.
Perfect for Mobile Applications: The AP309 was specifically designed with mobility in mind:
- Self-Contained: Built-in compressor, water system—no external connections needed beyond power
- Medical-Grade Wheels: Easy transport between locations, even over uneven surfaces
- Quick Setup: Ready to use in under 15 minutes (plug in, boot PC, begin treating)
- Rugged Construction: Designed to withstand regular transport and varying conditions
Current Use Cases: Rural outreach programs, nursing home dental care, corporate wellness programs, disaster relief, military field hospitals, and multi-location dental practices.
Standard Warranty: 2 years comprehensive coverage on all components (X-ray system, PC, compressor, instruments, frame)
Technical Support:
- Lifetime email/WhatsApp support (24/7 availability)
- Remote PC configuration and software setup assistance
- Video call troubleshooting for technical issues
- Spare parts availability with 3-5 day international shipping
Extended Warranty: Available up to 5 years for additional peace of mind.
