Clean, Dry, Oil‑Free Air — Designed for Modern Dental Practices
AZ‑FA40B · 40L Silent Oil‑Free Dental Air Compressor with Dryer
A reliable dental air supply is the foundation of every smooth clinical procedure. AZ‑FA40B is a medical‑grade oil‑free dental air compressor with an integrated air dryer, built for clinics that need clean, dry, stable, and low‑noise compressed air.
Not an industrial compressor. Standard shop compressors are engineered for power tools and factory air lines. AZ‑FA40B is engineered around dental equipment — where air purity, patient comfort, and instrument protection matter as much as raw output.
Stable Output
0.5–0.8 MPa
Cleaner Air. Quieter Clinics. Better Patient Experience.
What Clinics Are Up Against
- ✕ Patients are more sensitive to clinic noise than ever
- ✕ Dental equipment demands stable, uninterrupted air pressure
- ✕ Moisture inside compressed air lines can damage costly instruments
- ✕ Frequent servicing quietly drives up operating costs
How AZ‑FA40B Responds
- ✓ Oil‑Free Air — no oil vapor near patients or instruments
- ✓ Integrated Dryer — moisture removed before it reaches your equipment
- ✓ 58dB Operation — quiet enough for treatment rooms near patients
- ✓ Automatic Pressure Control — reliable performance, procedure after procedure
See It In Action
Medical‑Grade Dental Compressor, Built for Clinical Environments
Watch how AZ‑FA40B delivers clean, dry, low‑noise compressed air for dental chairs and pneumatic instruments — and how straightforward it is to install and run.
Product Introduction
AZ‑FA40B 40L Silent Oil‑Free Dental Air Compressor with Dryer
Dental clinics need more than compressed air — they need air that protects instruments, holds stable pressure through every procedure, and stays quiet enough for the patient in the next room. See the oil‑free pump, integrated dryer, and 40L tank in action.
Installation & Operation
How to Install and Operate AZ‑FA40B
Connect to your dental unit, and the compressor takes over: it starts producing air near 0.5 MPa, holds pressure through the 40L tank, and stops automatically at 0.8 MPa — reducing runtime, saving energy, and extending pump life.
Core Features
What Sets a Dental‑Grade Compressor Apart
01 · Air Quality
Medical‑Grade Oil‑Free Air Technology
Dental equipment runs on clean air. Oil vapor carried over from conventional lubricated compressors can contaminate:
- Dental handpieces
- Dental chairs and delivery units
- Pneumatic instruments
- Clinical procedures themselves

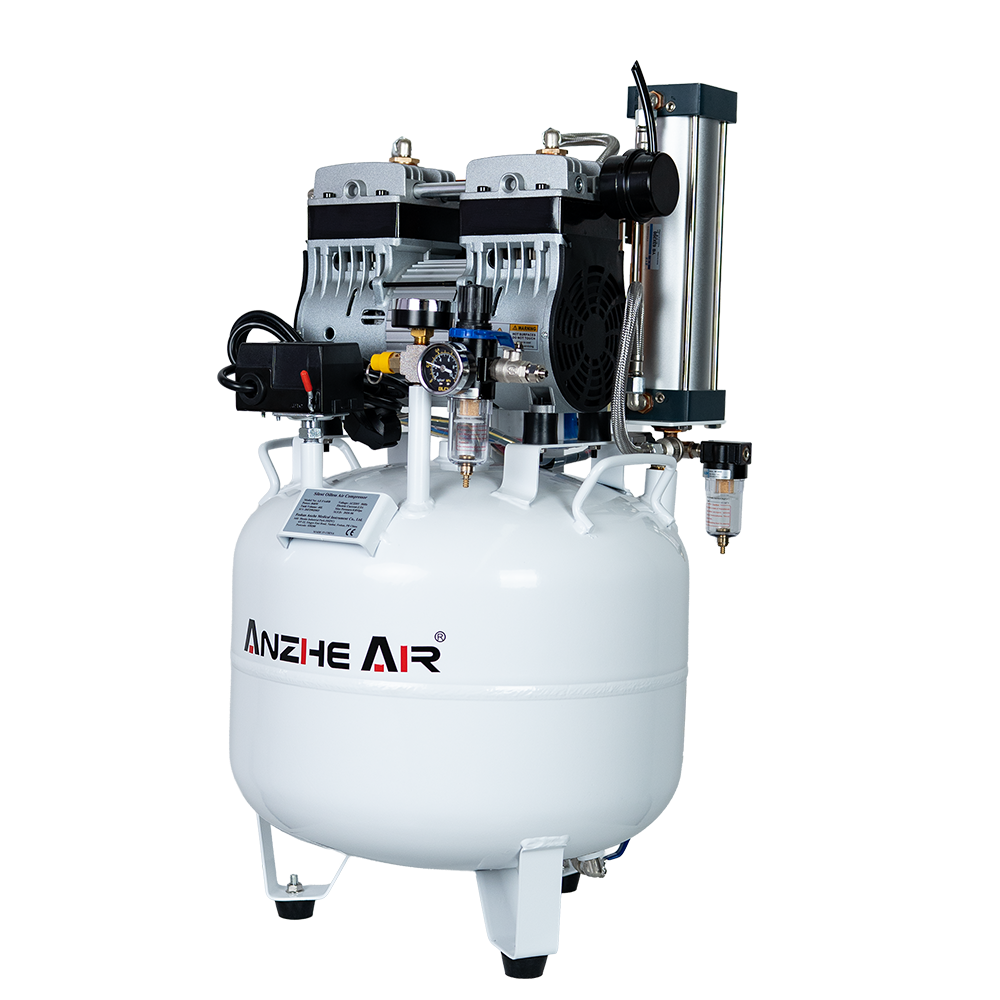

AZ‑FA40B's oil‑free compression delivers clean air with no oil vapor contamination — a cleaner air source for a cleaner clinical environment.
02 · Moisture Control
Why Choose a Dental Compressor With a Dryer?
Compressed air always carries moisture. Left untreated inside dental air lines, that moisture can lead to:
- Internal corrosion of tanks and fittings
- Damage to sensitive dental equipment
- Reduced instrument lifespan
- Unstable pneumatic performance

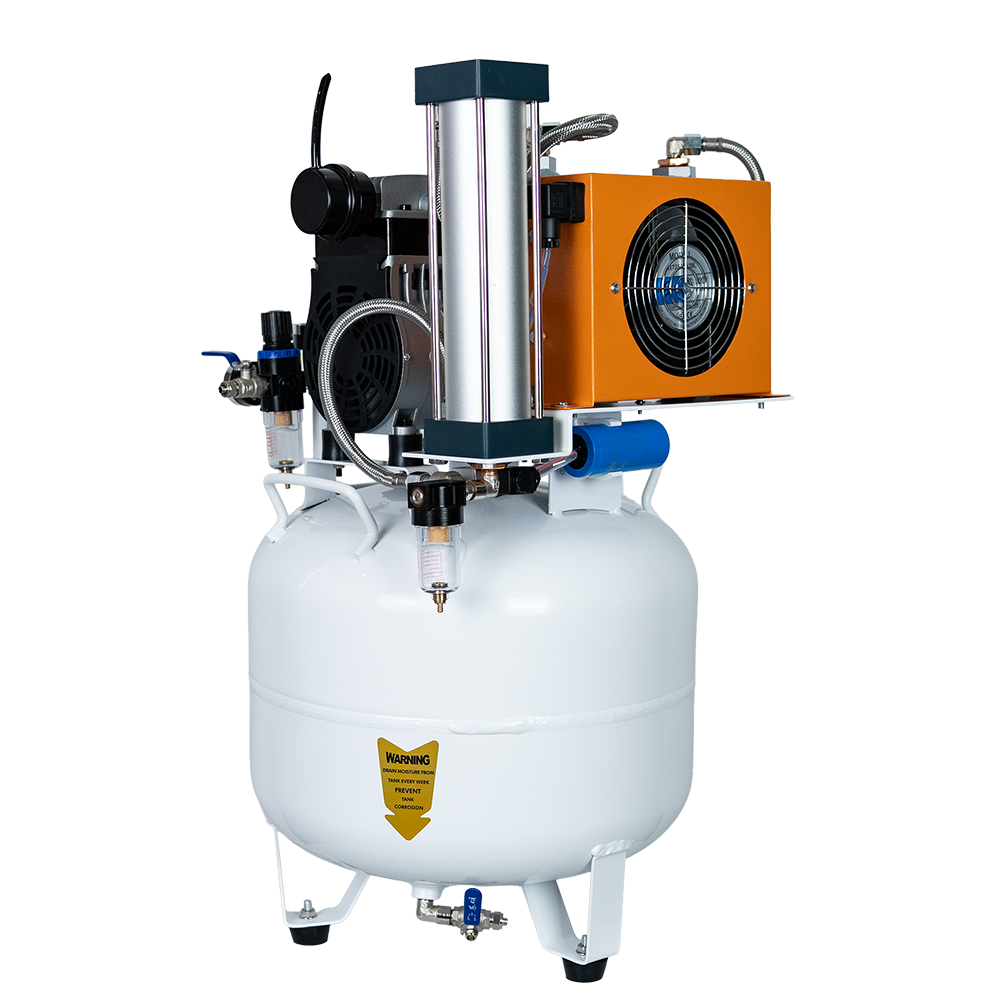

The built‑in dryer removes moisture before it ever reaches your equipment — protecting dental chairs and instruments, reducing maintenance frequency, and extending service life.
03 · Acoustic Comfort
Quiet Operation for Patient‑Friendly Clinics
Patients notice noise before they notice anything else. At just 58dB, AZ‑FA40B runs noticeably quieter than conventional industrial compressors — making it well suited to:
- Treatment rooms located near patients
- Small private clinics
- Premium dental practices
A quieter compressor means a calmer patient experience — from the waiting room to the chair.
04 · Consistent Output
Stable Pressure for Daily Dental Procedures

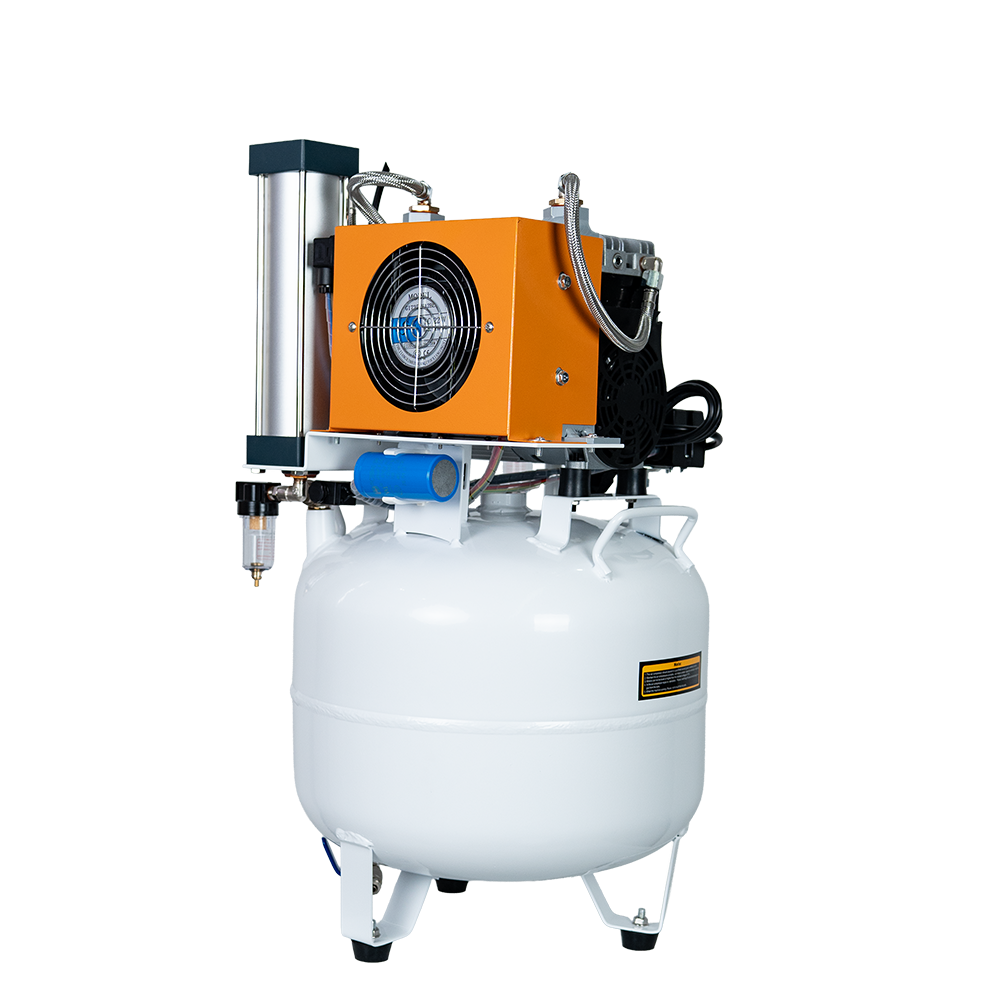

Dental equipment depends on consistent air pressure to perform predictably, procedure after procedure. AZ‑FA40B holds:
- Starting pressure of 0.5 MPa
- Exhaust pressure of 0.8 MPa
- 40L tank capacity for sustained daily use
Efficient by design: an 850W motor and automatic pressure control deliver reliable performance while keeping energy use in check.
Technical Specifications
Built to Dental Air‑Supply Standards
Every figure below reflects performance suited to daily clinical use — not adapted from a workshop compressor spec sheet.
AZ‑FA40B
SILENT OIL‑FREE DENTAL AIR COMPRESSOR WITH DRYER
| Model | AZ‑FA40B |
| Type | Silent Oil‑Free Compressor w/ Dryer |
| Application | Dental Medical Air Supply |
| Voltage | AC110V/60Hz or AC220V/50Hz |
| Power | 850W |
| Current | 3.6A |
| Tank Capacity | 40L |
| Airflow | 105L/min |
| Starting Pressure | 0.5 MPa |
| Exhaust Pressure | 0.8 MPa |
| Noise Level | 58dB |
| Gross Weight | 40kg |
| Packing Size | 5 × 45 × 75 cm |
Dual‑Voltage Ready
Runs on AC110V/60Hz or AC220V/50Hz, so the same unit fits clinics across North America, Europe, and beyond without a separate transformer.
105L/min Airflow, 40L Reserve
Enough reserve capacity to support continuous dental chair use without frequent cycling, keeping wear on the pump and noise exposure to a minimum.
58dB — Below Typical Conversation
Quiet enough to run in an adjacent utility room without becoming part of the patient's experience in the chair.
Ideal For
Where AZ‑FA40B Fits Best

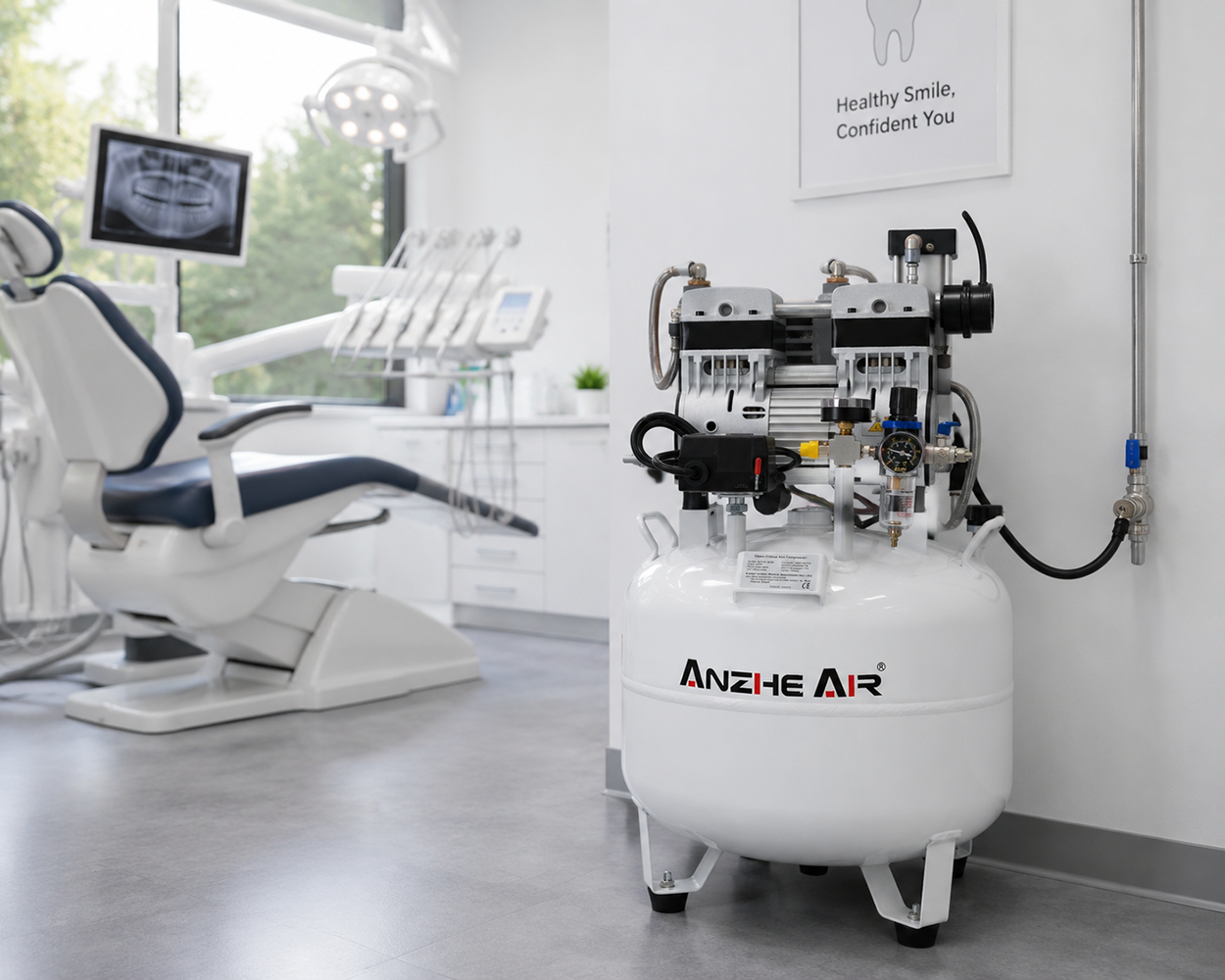

Private Dental Clinics
Reliable compressed air delivered quietly, without disrupting patient comfort in single‑chair practices.
Multi‑Chair Dental Practices
Stable pressure and sufficient reserve capacity to support consistent daily treatment across several chairs.
Dental Training Centers
Clean, consistent air supply that keeps teaching environments running reliably across multiple simultaneous stations.
Dental Laboratories
Suited to lab applications that require clean, dry compressed air for precision work.
Why Dentists Choose AZ‑FA40B
Medical‑Grade Oil‑Free vs. Industrial Air Compressors
Industrial compressors are built to move air. Dental compressors are built to protect patients, instruments, and clinical workflow — that difference shows up daily.
Typical Industrial Compressor
- ✕Oil‑lubricated pumps carry contamination risk into air lines
- ✕Excessive noise that carries into treatment rooms
- ✕Moisture builds up inside air lines and tanks
- ✕Higher maintenance demands and downtime
- ✕Not designed around dental equipment requirements
AZ‑FA40B Dental Solution
- ✓Oil‑free clean air, procedure after procedure
- ✓Integrated dryer system removes moisture before it spreads
- ✓58dB quiet operation near patients
- ✓Stable pressure output for consistent clinical performance
- ✓Designed specifically around dental equipment requirements
Frequently Asked Questions
Dental Air Compressor Questions, Answered
Why does a dental clinic need an oil‑free compressor?
What is the benefit of the dryer version?
Is AZ‑FA40B suitable for dental chairs?
How noisy is this compressor?
What's the difference between medical dental compressors and industrial compressors?
- Air purity
- Low noise for patient comfort
- Stable pressure for clinical procedures
- Protection of sensitive dental equipment
- Long‑term clinical reliability
Upgrade Your Dental Air System
Cleaner, Quieter, More Reliable Compressed Air — Starting With Your Next Chair
- Cleaner air
- Lower maintenance
- Better equipment protection
- Improved patient experience
