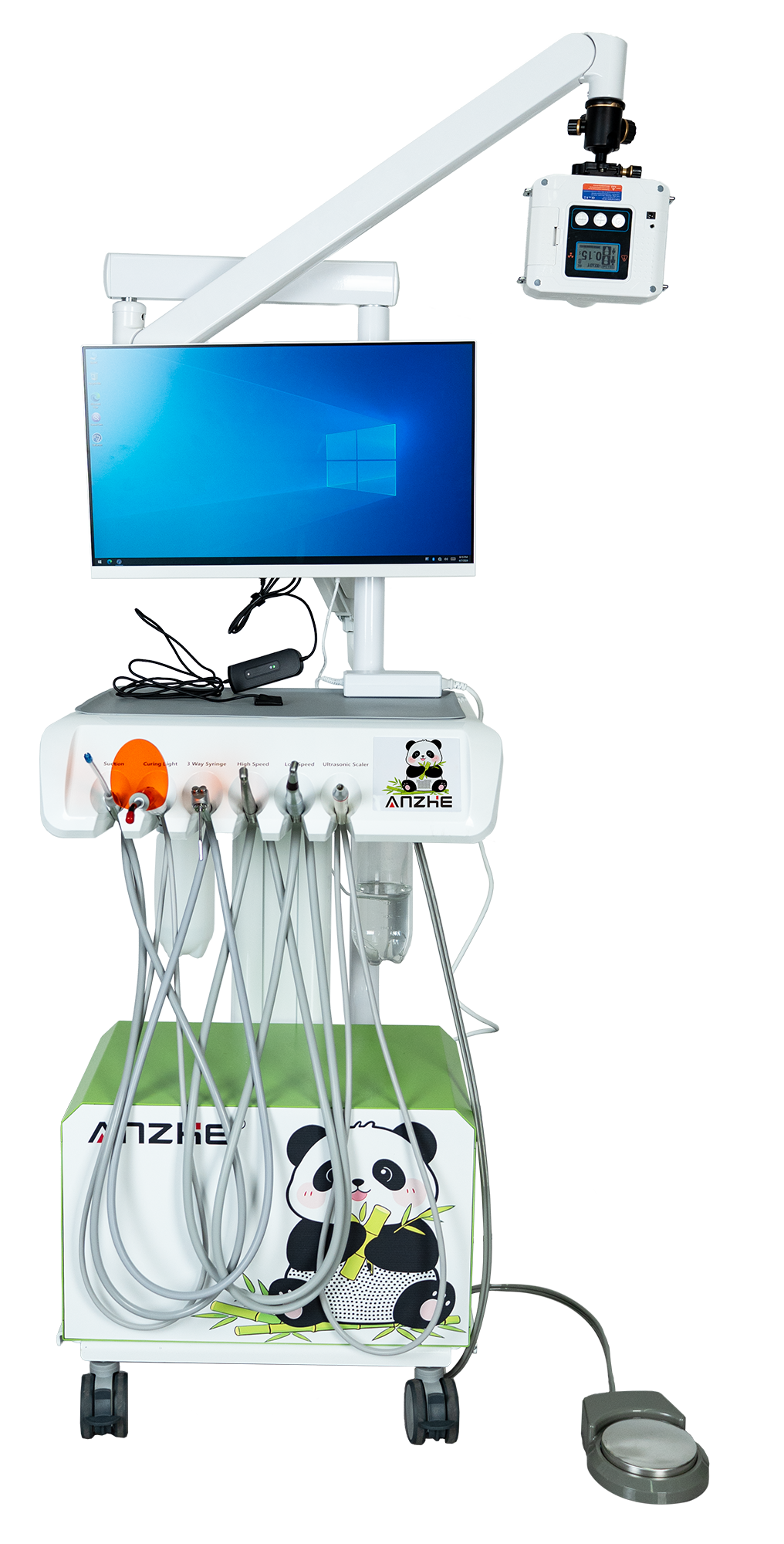

AP201 Veterinary Dental Unit
with X-ray & Digital Sensor
The AP201 revolutionizes small animal dentistry by eliminating the impossible choice veterinarians face daily: "Do I refer this case or guess?" See what's hidden beneath the gumline instantly, diagnose with confidence, and treat immediately—all at the patient's side.
🔍 The Problem Every Vet Knows Too Well
8:42 AM, Tuesday: A 9-year-old Golden Retriever presents with facial swelling. Visual exam suggests stage 3 periodontal disease, but you can't see the extent of bone loss, hidden root abscesses, or retained root tips.
Your Options:
- ❌ Refer to specialist → Owner declines ($800-$1,400 quote), dog goes untreated
- ❌ Extract blindly → Risk incomplete extraction, mandibular fracture, post-op complications
- ❌ Send to imaging center → 3-day wait, owner picks up sedated dog, appointment disrupted
- ✅ AP201 Solution: X-ray at chairside in 30 seconds, see exact pathology on screen, proceed with surgical plan confidently
+ Digital Sensor
⚠️ The 5 Critical Situations Where AP201 Changes Everything
Feline Resorptive Lesions: The 35% You Can't See
Scenario: 11-year-old domestic shorthair, difficulty eating, one visible tooth lesion on examination.
Without AP201:
- Extract the one visible tooth based on clinical exam
- Send cat home
- Cat returns 3 weeks later—still not eating
- Turns out: 4 additional teeth had type 2 resorption hidden below gumline
- Second anesthesia, second procedure, owner frustrated, your reputation damaged
With AP201:
- ✓ Full mouth X-rays in 8 minutes chairside
- ✓ Identify all 5 affected teeth instantly on digital sensor
- ✓ Complete extractions in single procedure
- ✓ Cat eating comfortably within 48 hours
- ✓ Owner impressed with thoroughness
Research Finding: Studies show 35% of feline dental disease is missed on visual examination alone. Full mouth radiographs change treatment plan in 27-42% of feline dental cases.
Mandibular Fracture Risk: The Fear That Stops You
Scenario: Small breed dog (Yorkshire Terrier), severe periodontal disease, mobile carnassial tooth.
The Paralyzing Question: "How much bone is left? If I extract, will the mandible fracture?"
Without Imaging:
- Refer to specialist (40% of owners decline due to cost)
- OR attempt extraction blindly (praying you don't cause iatrogenic fracture)
- OR prescribe antibiotics and "monitor" (disease progresses, outcome worse)
With AP201:
- ✓ X-ray shows exact bone loss percentage
- ✓ <40% bone loss → safe to extract with care
- ✓ >60% bone loss → refer with objective data (owner understands why)
- ✓ No guessing, no fear, no surprises
Clinical Reality: Mandibular fractures occur in 1-3% of dental extractions in small breeds. Pre-surgical radiographs reduce this risk by enabling informed decision-making.
Anesthesia Time: Every Extra Minute Increases Risk
Scenario: 13-year-old Labrador, grade 3/6 heart murmur, needs dental surgery.
Traditional Workflow WITHOUT Integrated Imaging:
- Anesthetize patient (10 min)
- Perform dental prophylaxis (25 min)
- Identify teeth needing extraction during cleaning (8 min)
- Take portable X-rays manually, process images (12 min)
- Wait for images, review findings (8 min)
- Begin extractions based on radiographs (35 min)
- Total anesthesia time: 98 minutes
- Geriatric patient, cardiac risk, prolonged recovery
AP201 Workflow:
- Anesthetize patient (10 min)
- Full mouth digital radiographs FIRST using AP201 sensor (8 min)
- Review all images on integrated PC, finalize surgical plan (4 min)
- Perform prophylaxis (25 min)
- Execute pre-planned extractions (30 min—faster because plan is clear)
- Total anesthesia time: 77 minutes
- 21 minutes less anesthesia = significantly reduced cardiac risk
Safety Impact: Reducing anesthesia time by 20-25% in geriatric or compromised patients measurably decreases post-operative complications. AP201's instant imaging eliminates decision-making delays under anesthesia.
Referral Revenue Loss: The Cases That Walk Away
Economic Reality:
- Specialist dental referral fee: $800-$1,400 per case
- Your referral cases per year: ~40-60 (typical mixed practice)
- Referral completion rate: 40-50% (owners decline due to cost/logistics)
- Result: 20-30 patients per year go untreated, living with dental disease
AP201 Changes the Equation:
- ✓ Handle 80-90% of dental cases in-house with diagnostic confidence
- ✓ Patients receive care (improved welfare)
- ✓ Owners grateful for accessible, affordable treatment
- ✓ Your practice retains revenue and builds dental reputation
- ✓ Still refer truly complex cases (jaw fractures, oral tumors) with objective radiographic data
Practice Growth: Veterinarians report 50-70% reduction in dental referrals after acquiring digital dental X-ray capability, while patient welfare outcomes improve due to increased treatment completion.
House Call Capability: Treat Where Traditional Equipment Can't
Scenario: Farm call for working Border Collie with fractured carnassial tooth. Dog is essential for farm operations; owner can't leave during lambing season.
Traditional Approach:
- Prescribe pain medication, antibiotics
- Schedule extraction when owner can transport dog to clinic (3-4 weeks)
- Dog works in pain, infection risk, owner stressed
AP201 Mobile Solution:
- ✓ Detachable X-ray unit transforms into handheld portable system
- ✓ Transport AP201 to farm in vehicle
- ✓ Set up in farm utility room (standard electrical outlet)
- ✓ X-ray the fractured tooth, assess root involvement
- ✓ Perform surgical extraction on-site
- ✓ Dog back to work in 5 days, owner relieved, your practice earns reputation for going above and beyond
Market Differentiation: Mobile veterinary dental services with diagnostic imaging capability are rare. AP201's detachable X-ray system enables house call dentistry that competitors cannot provide.
💡 AP201 vs. Traditional Veterinary Dental Setup: The Reality
Eliminates $40,000-$65,000 Wall-Mount System Investment
Traditional Veterinary Dental X-ray Setup:
- Wall-mounted intraoral X-ray unit: $12,000-$18,000
- Digital sensor (veterinary-grade): $8,000-$12,000
- Dental imaging software: $3,000-$5,000
- Treatment table with dental instruments: $8,000-$15,000
- Separate compressor and suction: $6,000-$10,000
- Installation, calibration, training: $3,000-$5,000
- Total Investment: $40,000-$65,000
- Plus: Dedicated treatment room required (120-150 sq ft)
AP201 All-in-One Solution:
- ✓ Integrated X-ray (detachable for mobility)
- ✓ Digital sensor included
- ✓ PC with Windows 10 and imaging software
- ✓ Complete treatment instruments
- ✓ Built-in compressor and suction
- ✓ Mobile—use anywhere in clinic or on farm calls
- ✓ Significant cost savings in single integrated system
Digital Sensor: Instant Images vs. 2-Minute Film Processing
Traditional Film Radiography Workflow:
- Position film in patient's mouth (difficult in small/uncooperative patients) (1-2 min)
- Take X-ray exposure (30 sec)
- Remove film carefully (30 sec)
- Transport film to processor (1 min)
- Wait for automatic processor (2 min) OR manual development (5 min)
- Wait for film to dry (2 min)
- Mount and review film (1 min)
- Total: 7-12 minutes per image
- Repeat process if exposure incorrect or positioning suboptimal
- Full mouth series (8-12 images): 60-90 minutes total
AP201 Digital Sensor Workflow:
- Position sensor in patient's mouth (veterinary-size, flexible cable) (30 sec)
- Take X-ray exposure (10 sec)
- Image appears on PC screen instantly (<5 sec)
- Review, enhance, save to patient file (30 sec)
- Total: 75 seconds per image
- Immediate feedback—if positioning needs adjustment, retake immediately
- Full mouth series: 8-12 minutes total
Efficiency Impact: 50-80 minutes saved per dental patient = treat 3-4 additional patients daily
Detachable X-ray: Portable OR Fixed—You Decide
The Versatility Advantage:
- In-Clinic Fixed Mode: X-ray arm mounted on AP201 cart. Position patient on treatment table, swing arm into place, capture images. Functions like traditional wall-mount but mobile between treatment rooms.
- Portable Handheld Mode: Detach X-ray unit from cart. Becomes lightweight handheld system. Perfect for:
- Large/aggressive dogs (can't position comfortably on table)
- Exotics (rabbits, ferrets) requiring gentle handling
- Farm calls (horses, livestock dental work)
- Shelter/rescue outreach programs
- Emergency calls (after-hours house visits)
Clinical Freedom: One investment, two operational modes. Adapt to any patient, any location, any situation.
Client Communication: Show, Don't Just Tell
The Compliance Problem:
Veterinarian: "Your dog has stage 3 periodontal disease with bone loss. We recommend extracting 4 teeth. The estimate is $680."
Client (thinking): "The teeth look okay to me. Maybe the vet is overselling. I'll think about it."
Result: 40-50% of recommended dental procedures are declined.
AP201 Visual Evidence Approach:
- Take digital X-rays chairside during exam
- Display images on integrated monitor immediately
- Point to bone loss with cursor: "See this dark area? That's 60% bone loss around this tooth."
- Zoom in on root abscess: "This shadowy area is infection. It's painful even though she's not showing obvious signs."
- Show before/after comparison from previous case: "Here's what improvement looks like after treatment."
Client (seeing evidence): "Oh my goodness, I had no idea. Let's schedule the surgery immediately."
Reported Impact: Practices using chairside digital imaging report 65-80% treatment acceptance (vs. 40-50% with verbal explanation alone). Visual evidence builds trust and urgency.
📹 See AP201 in Action: 60-Second Clinical Demo
Watch how the integrated X-ray, digital sensor, and PC system work together for instant chairside diagnostics:
- ✓ Detachable X-ray unit shown in both mounted and handheld configurations
- ✓ Digital sensor capturing instant images on Windows 10 PC
- ✓ Complete instrument setup including scaler, curing light, handpieces
- ✓ Built-in compressor delivering reliable air and suction
Video demonstrates actual clinical workflow—no marketing fluff, just real equipment operation.
🛠️ Complete Configuration & Technical Specifications

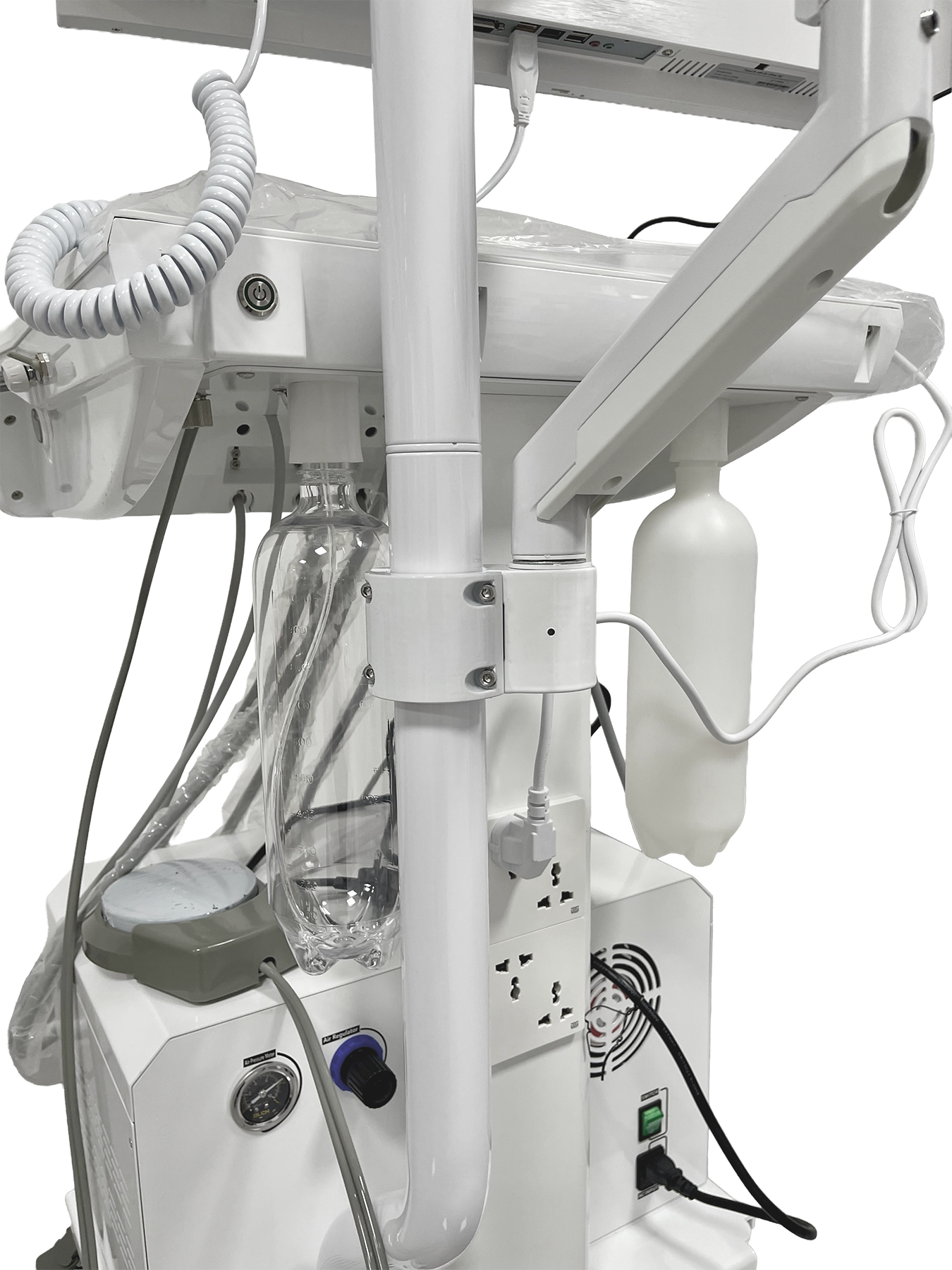

📦 Package Configuration (Standard)
- 📡 X-Ray Machine (Detachable) 1 pcHigh-frequency generator, mounts on cart OR converts to handheld portable
- 🦷 Veterinary Digital Sensor 1 pcSize 1.5 (veterinary-specific), instant image display, USB connection
- 💻 All-in-One Computer 1 pcIntel Core i7, Windows 10 Pro, pre-installed imaging software
- 📷 1080p HD Oral Camera 1 pcHigh-definition intraoral camera for client education and documentation
- ⚕️ Built-in Ultrasonic Scaler 1 pcWoodpecker® Original, 28kHz frequency, autoclavable tips
- 💡 Built-in LED Curing Light 1 pcWoodpecker® Original, ≥1000 mW/cm², 5-second cure mode
- 💉 Three Way Syringe1 pc
- ⚡ High Speed Handpiece Tube (LED)1 pc
- 🔧 Low Speed Handpiece (Internal Water Spray)1 pc
- 🌪️ Strong Suction Tube1 pc
- 💧 Water Bottle1 pc
- 🚰 Drain Bottle1 pc
- 🔌 Air Compressor with Tank1 pc
- 🦶 Foot Control1 pc
⚙️ Technical Specifications
| X-ray Imaging System | |
|---|---|
| X-ray Type | High-Frequency Digital (HF) |
| Configuration | Mounted on cart OR detachable handheld |
| Sensor Type | Veterinary Digital Sensor Size 1.5 |
| Image Display | Instant (<5 seconds to screen) |
| Radiation Safety | 30-40% lower dose than conventional DC units |
| PC & Imaging Software | |
| Processor | Intel Core i7 (8th Gen or newer) |
| Operating System | Windows 10 Pro (64-bit) |
| RAM | 16GB DDR4 |
| Storage | 512GB SSD |
| Monitor | Integrated all-in-one touchscreen |
| Software Compatibility | DICOM, TWAIN (works with AVImark, Cornerstone, eVetPractice, etc.) |
| Air & Suction System | |

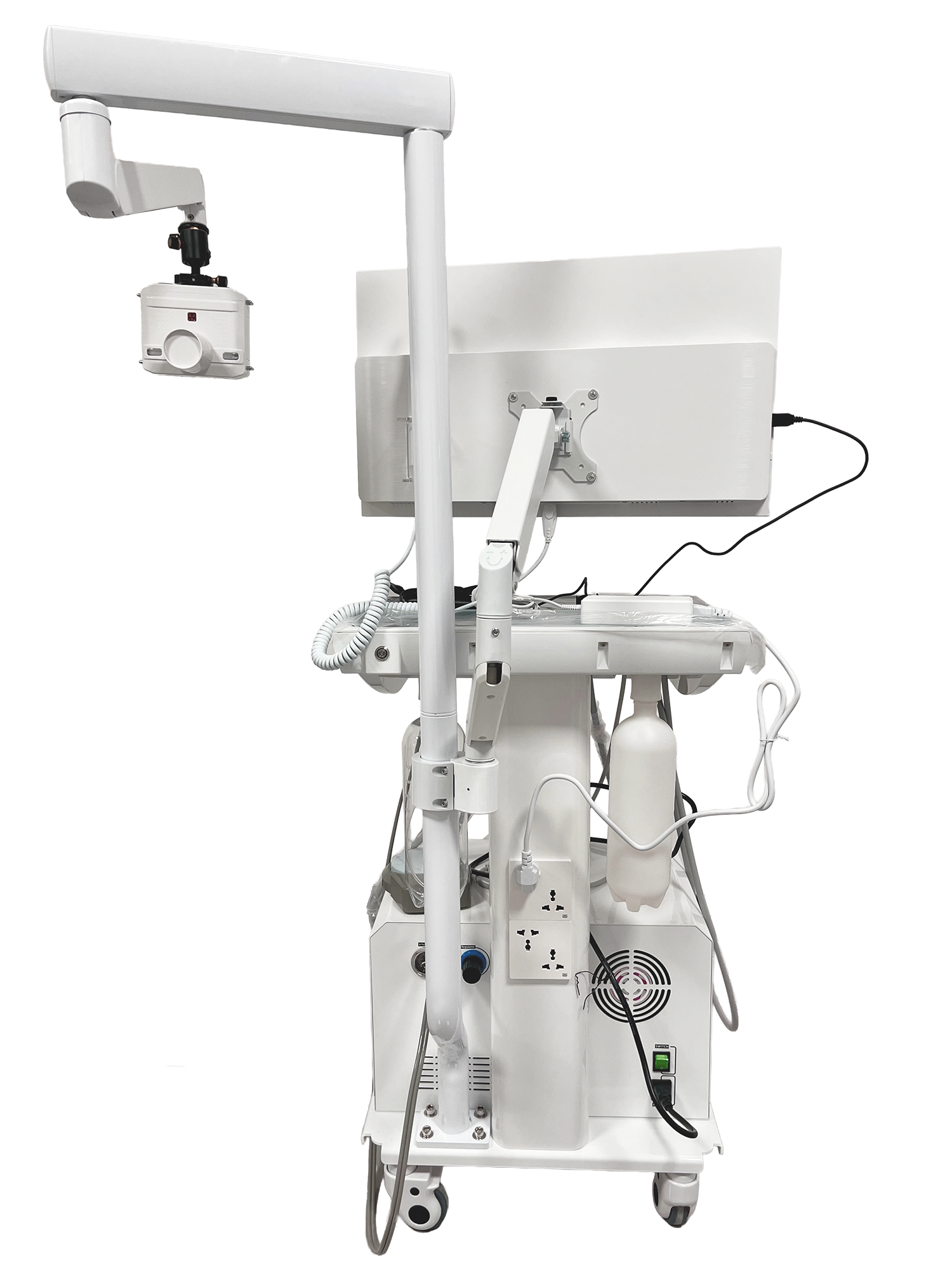

| Compressor | Oil-free with integrated tank |
| Compressor Duty | Continuous operation (veterinary-grade) |
| Suction Capacity | 65 L/min sustained |
| Noise Level | ≤55 dB(A) at 1 meter |
| Physical & Certifications | |
| Voltage | 110V/60Hz OR 220V/50Hz (specify at order) |
| Total Weight | Approx. 95 kg (complete system) |
| Mobility | Medical-grade locking casters |
| Quality Certification | ISO 13485:2016 |
| Safety Standards | CE Marked, FDA-compliant components |
| Warranty | 2 Years Comprehensive (parts & technical support) |
🔗 Software Integration
Compatible with Major Veterinary PIMS:
- ✓ AVImark (Covetrus)
- ✓ Cornerstone (IDEXX)
- ✓ eVetPractice
- ✓ ImproMed Infinity
- ✓ VIA Information Tools
- ✓ Any DICOM or TWAIN-compliant practice management system
Our technical team provides remote setup assistance to integrate AP201 with your existing software (included in purchase).
Common Questions About AP201
Two Operational Modes:
1. Mounted Mode (Primary Use): X-ray generator attached to articulating arm on AP201 cart. Patient positioned on treatment table. Swing arm into position, align with sensor, capture image. Functions like traditional wall-mount system but mobile.
2. Handheld Mode (Specialty Applications): X-ray unit detaches from arm. Becomes lightweight portable system. Use for:
- Large/aggressive patients difficult to position on table (Great Danes, reactive dogs)
- Exotic animals requiring gentle handling (rabbits, ferrets, small mammals)
- Farm calls (equine dentistry, livestock)
- House call veterinary services
- Shelter/rescue mobile clinic outreach
Transition: 30-second quick-release mechanism. No tools required. Reattach just as easily.
Sensor Specifications:
Size 1.5 Veterinary Sensor (between human size 1 and size 2)—optimized for small animal dentistry:
- Active Area: 26mm × 36mm (perfect for canine and feline oral cavities)
- Thickness: 5.8mm (thin enough for small mouths, durable for veterinary use)
- Cable: Flexible, kink-resistant, autoclavable protective sheath
- Corners: Rounded edges (reduces patient discomfort, prevents soft tissue trauma)
Fits These Patients Comfortably:
- ✓ Cats (all breeds, even small/brachycephalic)
- ✓ Small dogs (Chihuahuas, Yorkshire Terriers, toy breeds)
- ✓ Medium/large dogs (full mouth series possible)
- ✓ Rabbits and ferrets (with proper positioning)
Note: For extremely small exotics (<500g), handheld film may still be preferred. For 99% of small animal patients, digital sensor works perfectly.
Yes—Universal Integration:
The VP201's Windows 10 PC supports all major veterinary PIMS through industry-standard protocols:
DICOM Support: Digital Imaging and Communications in Medicine standard. Images export directly to DICOM-compatible systems (AVImark, Cornerstone, eVetPractice, ImproMed, etc.). One-click export to patient files.
TWAIN Driver: Universal scanning interface. If your software can import images from a scanner/camera, it can import from AP201's sensor. Drag-and-drop functionality.
Manual Integration: If software has basic image attachment (like email attachments), images saved as JPEG/PNG and manually attached to records.
Setup Assistance Included: Our technical team (US-based support available) provides remote setup via TeamViewer/AnyDesk to configure integration with your specific PIMS. Typically 30-60 minutes during initial setup call.
Over 95% of veterinary practices achieve seamless integration with existing systems.
AP201 Safety Features:
- High-Frequency Technology: 30-40% lower radiation dose than conventional DC units while maintaining diagnostic image quality
- Focused Beam: Narrow collimation minimizes scatter radiation
- Fast Exposure: Digital sensor requires shorter exposure time than film (typically 0.05-0.20 seconds)
Standard Veterinary Radiography Protocols:
- Operator stands minimum 6 feet from X-ray source during exposure
- Use proper positioning aids (never hold patient manually during exposure)
- Patient wears lead apron when appropriate (conscious patients, pregnant)
- Staff wear dosimeter badges if performing dental radiography regularly
Regulatory Compliance: AP201 meets state-specific veterinary radiation equipment regulations. We provide compliance documentation for your state veterinary board registration.
Room Requirements: No special shielding required when following standard safety protocols. Can be used in any treatment room with proper operator distance.
Ideal for Mobile Veterinary Applications:
Why AP201 Works for House Calls:
- Truly Portable: Entire system fits in SUV/van. Medical-grade wheels roll over driveways, uneven surfaces
- Self-Contained: Built-in compressor, water system, PC. Only requires standard household electrical outlet (110V)
- Quick Setup: 15-20 minutes from vehicle to ready-to-treat (faster with practice)
- Detachable X-ray: Convert to handheld mode for difficult-to-move patients or farm animals
- Rugged Construction: Designed to withstand regular transport (unlike fragile wall-mount systems)
Current Mobile Use Cases:
- Mobile veterinary dental specialists serving multi-state regions
- Farm call mixed practices (equine + small animal)
- Geriatric pet home euthanasia services (offering dental care for pets unable to travel)
- Shelter outreach programs (spay/neuter + dental clinics)
- Emergency/after-hours house call practices
Transport Protection: Custom padded cases available for X-ray unit, sensor, and instruments (sold separately or DIY with foam).
Comprehensive 2-Year Warranty Coverage:
- X-ray generator and sensor (most critical/expensive components)
- PC hardware (motherboard, processor, RAM, SSD)
- Compressor and suction system
- Ultrasonic scaler and LED curing light (Woodpecker® factory warranty)
- Handpiece tubes and pneumatic systems
- Frame, casters, and structural components
Warranty Excludes (Normal Wear Items): Scaler tips, curing light bulbs, handpiece bearings (these are consumables)
Technical Support (Lifetime):
- Email: anzhedental1011@gmail.com (response within 12-24 hours)
- WhatsApp: +86 13751041011 (often faster response, includes photos/videos for troubleshooting)
- Video Call Support: TeamViewer/Zoom for complex software issues or PC configuration
- Spare Parts: Stocked in US warehouse (common items ship within 3-5 business days domestically)
Extended Warranty: Available up to 5 years for additional coverage. Discuss at time of purchase.
Request Quote for AP201 Veterinary System
Get factory-direct pricing, complete specifications, and veterinary practice integration guidance
Response within 12 hours | US-based technical support available
